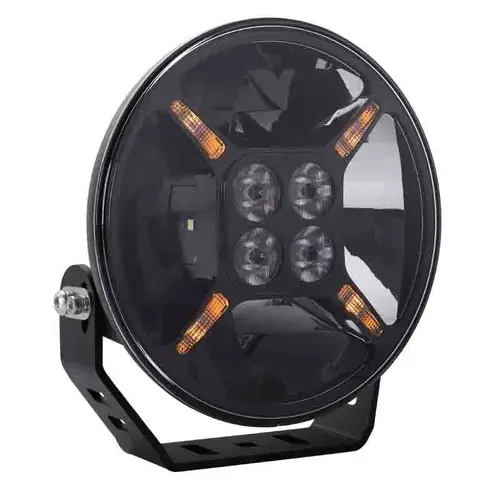

LED Driving light with daytime running lights | 12,000 lumens | 9-36v | WD-80120.1
Make your truck or 4x4 unique with The Graveler, this LED daytime running light is built to excel in functionality and quality in addition to its great looks. The unique feature of this spotlight is the daytime running light, here you can choose between white or amber light. In addition, the lamp is equipped with the best materials such as the impact-resistant polycarbonate lens and the robust housing with adjustable mounting base. The spotlight has an IP value of IP69K and is therefore resistant to high-pressure spraying. The electronics are equipped with ETM, this thermal management system regulates the internal heat development. This system contributes to the long life of the LED spotlight. The EMC interference suppression (ECE-R10) is also of high value, as the beamers are often placed high in the cabin where many electronics including the radio are located. A good EMC suppression is therefore an absolute must. With The Graveler, you will not experience any EMC problems.
Plus points:
+ Choice of white or amber daytime running lights
+ ECE-R112 & ECE-R7 certified (excl. amber marker light)
+ Equipped with 3m. connection cable with a Deutsch connector
+ Perfect light pattern thanks to the combination of TIR & RFT lens technology
+ Also available in a chrome version
+ Besides this round version, Tralert also offers an oval version, The Infinity series
Both The Graveler and The Infinity series are equipped with 3m. This cable has a 4-pole Deutsch connector on the lamp side and an open threaded end on the other side. A 4-pin Deutsch connector is placed 15 cm from the lamp and the 3m extension cable can be clicked onto this. This way you have a 100% reliable cabling up to the cabin and you avoid extra work by soldering and connecting loose cables.
We advise to use the extension cable with Deutsch connectors and not to cut off the connectors when connecting these LED Beamers. In addition, we recommend the use of a relay to handle the heavy load. If you have any questions about the connection, please feel free to contact us, we will be happy to advise you.
